  Heavy Duty VHF 2 METER ANTENNA
Model HX6-14448 (6 dBd)
- Gain: 6 dBd
- Bandwidth: 4 MHz.
- V.S.W.R.: 1.5:1
- Polarization: Vertical
- Power Rating: 600 Watts Maximum
- Termination: Type N Female
- Vertical Aperture (3 dB from max.): 16 Degrees (6 dBd)
- Weight: 24 lb.
- Wind Load (Lateral thrust @ 100 mph): 92 lb.
- Wind Area (flat plate equivalent): 1.65 sq. ft.
- Maximum Wind Speed: 140 mph
- Material Feed Lines: Copper
- Radiators: Brass
- Color Radome: White Fiberglass

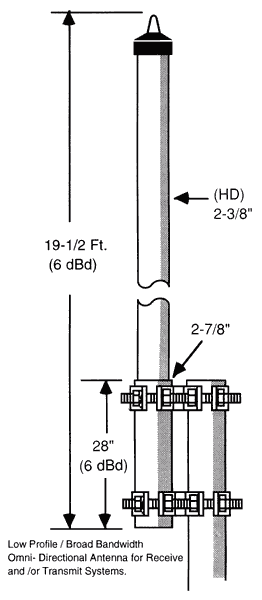

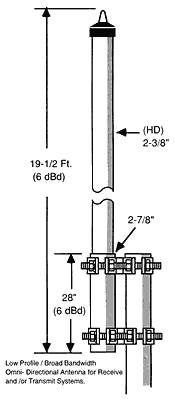

- Mounting: Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
- Lightning Protection: Direct Ground
|
