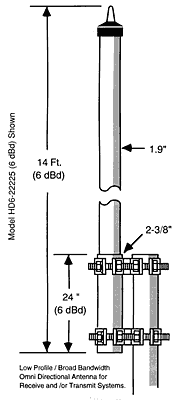

225-225 MHz Antenna222-225 MHz. VHF ANTENNA


Model Number
  • HSU-22225 (Unity)
  • HS3-22225 (3 dBd)
  • HD6-22225 (6 dBd)
    • Gain: Unity, 3 dBd, 6 dBd
    • Bandwidth: 4 MHz.
    • V.S.W.R.: 1.5:1
    • Polarization: Vertical
    • Power Rating: 500 Watts Maximum
    • Termination: Type N Female
    • Vertical Aperture (3 dB from max.):
      • 75 Degrees (0 dBd)
      • 36 degrees (3 dBd)
      • 16 degrees (6 dBd)
    • Weight: 16 lb.
    • Wind Load (Lateral thrust @ 100 mph): 78 lb.
    • Wind Area (flat plate equivalent):  1.2 sq. ft.
    • Maximum Wind Speed: 130 mph
    • Material Feed Lines: Copper
    • Radiators: Copper
    • Color Radome: White Fiberglass
    • Mounting: Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning Protection: Direct Ground

Radiation Pattern
