Land Mobile Spriit 9 dB Gain AntennaSPIRIT SERIES
CELLULAR / TRUNKING / PAGING
Low Profile/Broad Bandwidth  Fiberglass
Omnidirectional Fiberglass Antenna


Model  Number
  • HS9-80669 (806-869 MHz.) TRUNKING
  • HS9-82496 (824-896 MHz.) CELLULAR
  • HS9-89060 (890-960 MHz.) GSM
  • HS9-90142 (901-942 MHz.) PAGING
  • HS9-92040 (920-940  MHz.) PAGING
    • Frequency  Range:  806-960 MHz

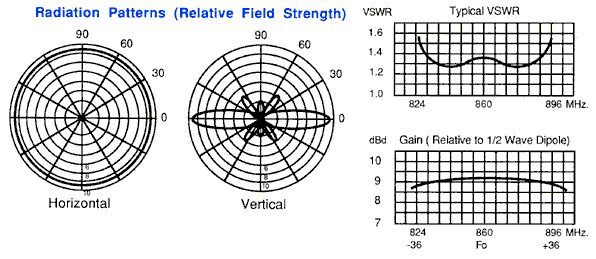

    • Gain:  9 dBd (11.1 dBi)
    • Bandwidth: Varies with model (see above)
    • V.S.W.R.:  1.5:1
    • Polarization:  Vertical
    • Power Rating:  400 Watts Maximum Continuous
    • Termination: Type N Female
    • Vertical Aperature
      (3 dB from max): 7 Degrees
    • Weight:  16 lbs. (7.3 kg.)
    • Wind Load
      (Lateral thrust @ 100 mph): 40 lbs. (18.1 Kg.)
    • Wind Area
      (flat plate equivalent): 1.0 sq. ft. (0.09 sq.m.)
    • Maximum Wind Speed:  130 mph (209 kph.)
    • Material:
      • Feed Lines: Copper
      • Radiators: Copper
    • Color: Radome White
    • Mounting (top or side mount): Galvanized steel mounting clamps permit mounting the antenna to a support pipe up to 3.25" O.D.
    • Lightning  Protection: Direct Ground
    • Accessories: Reflector Tube (adds 3 dB directional).
